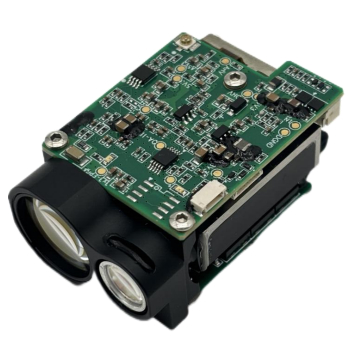

FW-ED03 1535nm Eye-safe Laser Ranging Module
| Place of Origin | China |
|---|---|
| Merknaam | Forward |
| Model Number | FW-ED03 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
WECHAT: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ8mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ16mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤20 m | Divergence Angle | ≤0.6 mrad |
Productomschrijving
Descriptions of FW-ED03 1535nm Eye-safe Laser Ranging Module
The FW-ED03 eye-safe laser ranging module adopts a self-developed 1535nm diode-pumped solid-state microchip laser. It has the capability to measure the distance of NATO targets with a size of 2.3m×2.3m, and the measuring range is ≥3000m. Its volume is ≤48×30.5×21 mm, and the weight is ≤32g. It is compact in size yet powerful in function. In addition, it supports serial port program updates and provides various installation options and electrical interfaces (excluding the housing). To further facilitate its integration into handheld portable devices or multi-functional systems, the module is equipped with embedded software. This product is widely applied in
laser ranging, Unmanned Aerial System (UAS), optical pods, and border monitoring.
Specifications of FW-ED03 1535nm Eye-safe Laser Ranging Module
|
Laser Wavelength
|
1535±5nm
|
|
Eye Safety
|
Class 1
|
|
Divergence Angle
|
≤0.6mrad
|
|
Laser Energy
|
≥100 μJ |
|
Launch Lens Diameter
|
Φ8mm
|
|
Receiver Lens Diameter
|
Φ16mm
|
| Measuring Range(Reflectance 30%; visibility ≥ 5km.) |
NATO objective(2.3m×2.3m) ≥3000m
Measuring human target(0.5m×1.7m) ≥1200m
|
|
Minimum Range
|
≤15 m
|
|
Ranging Accuracy
|
±2m
|
|
Ranging Frequency
|
Single, 1Hz ~10Hz
|
|
Number of multi-target detections
|
Up to 3 targets
|
|
False Alarm Rate
|
≤1%
|
|
Precision Rate
|
≥98%
|
|
Pin-in-lead package model
|
FWF08002-S06B13W5M
|
|
Supply Voltage
|
DC 3~5 V
|
|
Standby Power Consumption
|
≤1mW
|
|
Weight
|
≤32±1 g
|
|
Dimention (L×W×H)
|
48×30.5×21mm
|
|
Operation Temperature
|
-40~＋70℃
|
|
Storage Temperature
|
-55~＋75℃
|
|
Impact Resistance
|
Meet the MIL-STD-810G testing standard
|
|
Vibration Resistance
|
Meet the MIL-STD-810G testing standard
|
Outline Dimension(mm)
