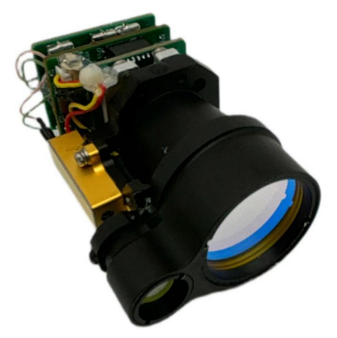

FW-ED05 1535nm Eye-safe Laser Ranging Module
| Place of Origin | China |
|---|---|
| Merknaam | Forward |
| Model Number | FW-ED05 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
WECHAT: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Laser Wavelength | 1535±5nm | Launch Lens Diameter | Φ10mm |
|---|---|---|---|
| Receiver Lens Diameter | Φ25mm | Ranging Accuracy | ±2m |
| Range Resolution | ≤15 m | Divergence Angle | ≤0.5 mrad |
Productomschrijving
Descriptions of FW-ED05 1535nm Eye-safe Laser Ranging Module
The LRF0610C laser ranging module is a multi-pulse laser rangefinder that can measure the distance of NATO targets (targets with a size of 2.3m×2.3m) with a distance of ≥ 6000m. It has the advantages of small size, light weight, low power consumption, long operating range, long service life, and Class 1 eye safety. It is widely used in laser measurement, Unmanned Aerial Systems (UAS), optical pods, and boundary monitoring.
Specifications of FW-ED05 1535nm Eye-safe Laser Ranging Module
|
Laser Wavelength
|
1535±5nm
|
|
Eye Safety
|
Class 1
|
|
Divergence Angle
|
≤0.5mrad
|
|
Laser Energy
|
≥200 μJ |
|
Launch Lens Diameter
|
Φ10mm
|
|
Receiver Lens Diameter
|
Φ25mm
|
| Measuring Range(Reflectance 30%; visibility ≥ 5km.) |
NATO objective(2.3m×2.3m) ≥6000m
Measuring human target(0.5m×1.7m) ≥1500m
|
|
Minimum Range
|
≤15 m
|
|
Ranging Accuracy
|
±2m
|
|
Ranging Frequency
|
0.5Hz ~10Hz
|
|
Number of multi-target detections
|
Up to 3 targets
|
|
False Alarm Rate
|
≤1%
|
|
Precision Rate
|
≥98%
|
|
Pin-in-lead package model
|
Molex51021-0500
|
|
Supply Voltage
|
DC 12 V
|
|
Standby Power Consumption
|
≤1mW
|
|
Average power consumption
|
≤2.5 W @10 Hz
|
|
Peak Power Consumption
|
≤7 W @12 V
|
|
Weight
|
≤90g
|
|
Dimention (L×W×H)
|
70×32×40mm
|
|
Operation Temperature
|
-40~＋70℃
|
|
Storage Temperature
|
-55~＋75℃
|
|
Impact Resistance
|
Meet the MIL-STD-810G testing standard
|
|
Vibration Resistance
|
Meet the MIL-STD-810G testing standard
|
Outline Dimension(mm)
